Tecmen FreFlow V1 with 100LW Respiratory Laser Welding Helmet
Tecmen FreFlow V1 with 100LW Respiratory Laser Welding Helmet
Couldn't load pickup availability

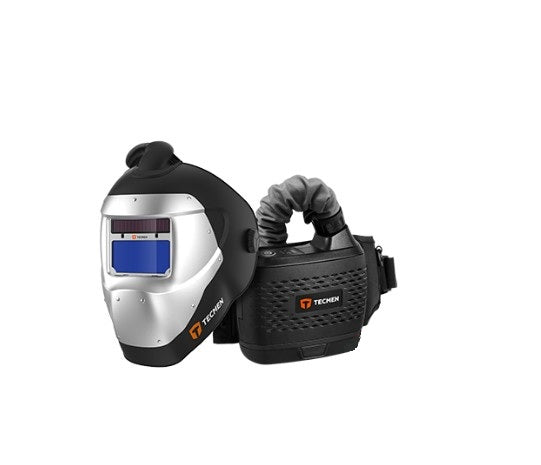

All-in-one integrated PAPR system for laser welding, cutting and cleaning. The 100LW helmet provides full protection against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam. Meanwhile, the FreFlow V1 blower unit delivers a stable airflow to users with clean air.
Specifications:
Welding Helmet:
Model: 100LW
Viewing Area: 96x46.5mm
Optical Class: 1 / 1 / 1 / 2
Number of Sensors: 2
Power On/Off: Automatic On/Off
Dark State: 4-8/8-12
Light State: Shade 2.0
Switching Speed: 1/25000s, from Light to Dart
Special Modes: GRIND / CUT / MIX / DARK
Sensitivity Control Low-High,button control
Delay 0.1-1.0s,button control
UV/IR protection Up to Shade DIN 16 at all times
Operating Temp. -10℃ to 55℃（14℉ to 131℉）
Storing Temp. -20℃ to 70℃（-4℉ to 158℉）
Helmet Material Special compound material
Laser Protection 1000-1100 D LB7+ IR LB8
Optical Density(OD ) OD 8@1000-1100nm,OD 10+@1064nm,OD 8+@1070nm
Approvals EN207, EN ISO 16321,EN12941 TH3

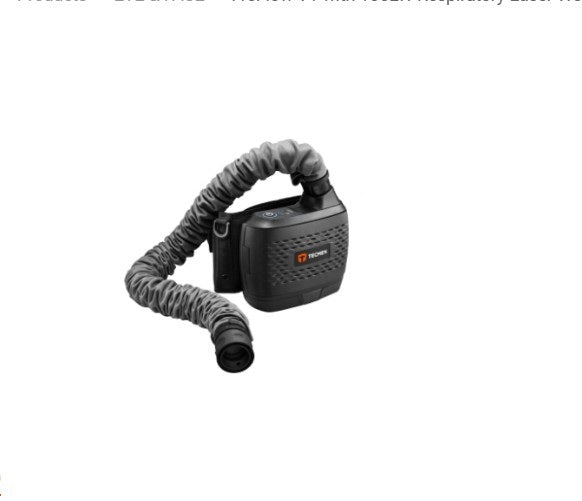

FreFlow V1 blower unit:
Minimum flow rate 165+lpm (5.8+cfm)
Low speed 170+lpm
High speed 210+lpm
Battery type Rechargeable Li-ion battery
Battery charge time 1 hour
Battery life At least 500 charges
Battery duration 9 hours at 170+lpm; 5-6 hours at 210+lpm
Weight 1020g
Filter efficiency ＞99.997%
Operating temp -10℃ to 55℃
Storing temp -10℃ to 55℃
Relative operating humidity ＜90%
Relative storage humidity ＜85%
Alarm Audible, visual, vibrating
